Best Digital Flow Meters

We are a leading Manufacturer of electromagnetic flow meters, flow meters, ultrasonic flow meters, bore type electromagnetic flowmeter, insertion type electromagnetic flow meter, and turbine flow meters from Chennai, India.

2 + 5 =

electromagnetic-flow-meter-rlt-solutions

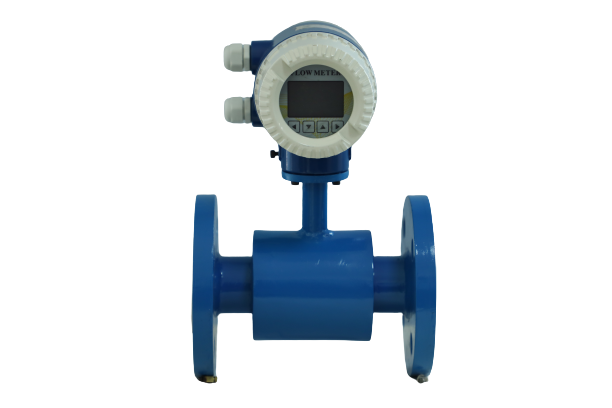

Electromagnetic Flow Meter

Approx. Rs 31,560 / Piece Get Latest Price



Product Details:

Application Media Any Liquid
Model Name/Number RLM 100
Brand Rlt instrumentation
Connection Flanged
Type Full bore
Display Digital
Flow range Max. 40 Bar / 150oC
Country of Origin Made in India
Velocity 0.01 m/s to 10 m/s

We are a paramount organization, which is engaged in manufacturing and supplying high quality Electromagnetic Flow Meter. The range offered by us manufactured under the close supervision of experienced professionals. All our experts make sure that high quality material, which is sourced from vendors of high repute.

Features:

  • High material strength
  • Accurate results
  • Battery operated


Specifications:

  • Pipe Size(s) : 10 to 3000 mm
  • Liner : PTFE,Hard-Rubber , PFA
  • Electrode Material:SS316/Alloy/Titanium/Tantalum/Platinum & Iridium
  • Flow Tube : AISI SS 304 , Flanges : Standard:CS ,Options:SS 304/304 L,SS 316/316 L
  • Protection Class:IP 65 / 67 / 68 (Optional)
  • Accuracy : +/- 0.5%
  • Transmitter – integral with sensor or remote
  • Velocity: 0.01 m/s to 10 m/s
  • Pressure/Temp: Max. 40 Bar / 150oC
  • Output & Communication: 4-20mA, Pulse, HART, RS485/232, GPRS, GSM, Bluetooth, TCP/iP
  • Housing: Flow tube is completely welded
  • Protection: iP 65, 67, 68, 3-Line Display with Back-lit LCD & Password Protection Display Parameter ,Flow rate, Totalized Value,Velocity, mV(Sensor Health-Check), empty pipe alarm & other self-diagnostics
  • Power Supply: 80-440VAC/24VDC/Battery Operated
  • Applications : Water/Waste-water,Chemical , Food ,Pharma ,etc
